Power is not a repair
After confirming the door and power tier, use the smart garage-door controller guide to check whether a retrofit controller supports the exact opener and smart-home system.
Choose an opener for a properly balanced door
A standard residential sectional door often fits a manufacturer’s 1/2-class opener when the exact model supports that door. Heavier construction, one-piece doors, high use and manufacturer requirements may justify a higher tier. A door that is heavy, drops, rises or binds by hand needs service, not a larger motor.
Quick answer: For many properly balanced steel or aluminum sectional doors, garage door opener horsepower in the 1/2 HP or 1/2 HPc class is a reasonable starting point. Consider a 3/4-class or higher-tier opener for a manufacturer-approved insulated, wood-overlay, wind-load, one-piece or high-use application. Confirm the exact opener’s door-type, height and weight limits, because HP, HPc and HPS are not universal capacity measurements.
The familiar advice to buy 1/2 HP for a single door and 3/4 HP for a double door is too simple. Width affects door weight, but so do material, insulation, glass, reinforcement, hardware and spring selection. A well-balanced double sectional door may move more easily than a smaller door with a broken or incorrect spring.
The five checks that matter before horsepower
Door condition
First checkpoint. The door should move smoothly by hand and remain reasonably balanced when disconnected, following the opener manual’s procedure.
Exact door support
Model-specific answer. Confirm sectional versus one-piece construction, door material, dimensions, weight and any wind-load or reinforcement requirements.
Rail and installation fit
Separate from power. A stronger motor does not lengthen a 7-foot rail or create the headroom and mounting structure an installation needs.
- Balance and travel: a heavy, fast-dropping, self-rising, rubbing or jerky door needs diagnosis before opener selection.
- Door construction: identify sectional or one-piece, steel, aluminum, wood, overlay, insulation, glass and wind-load reinforcement.

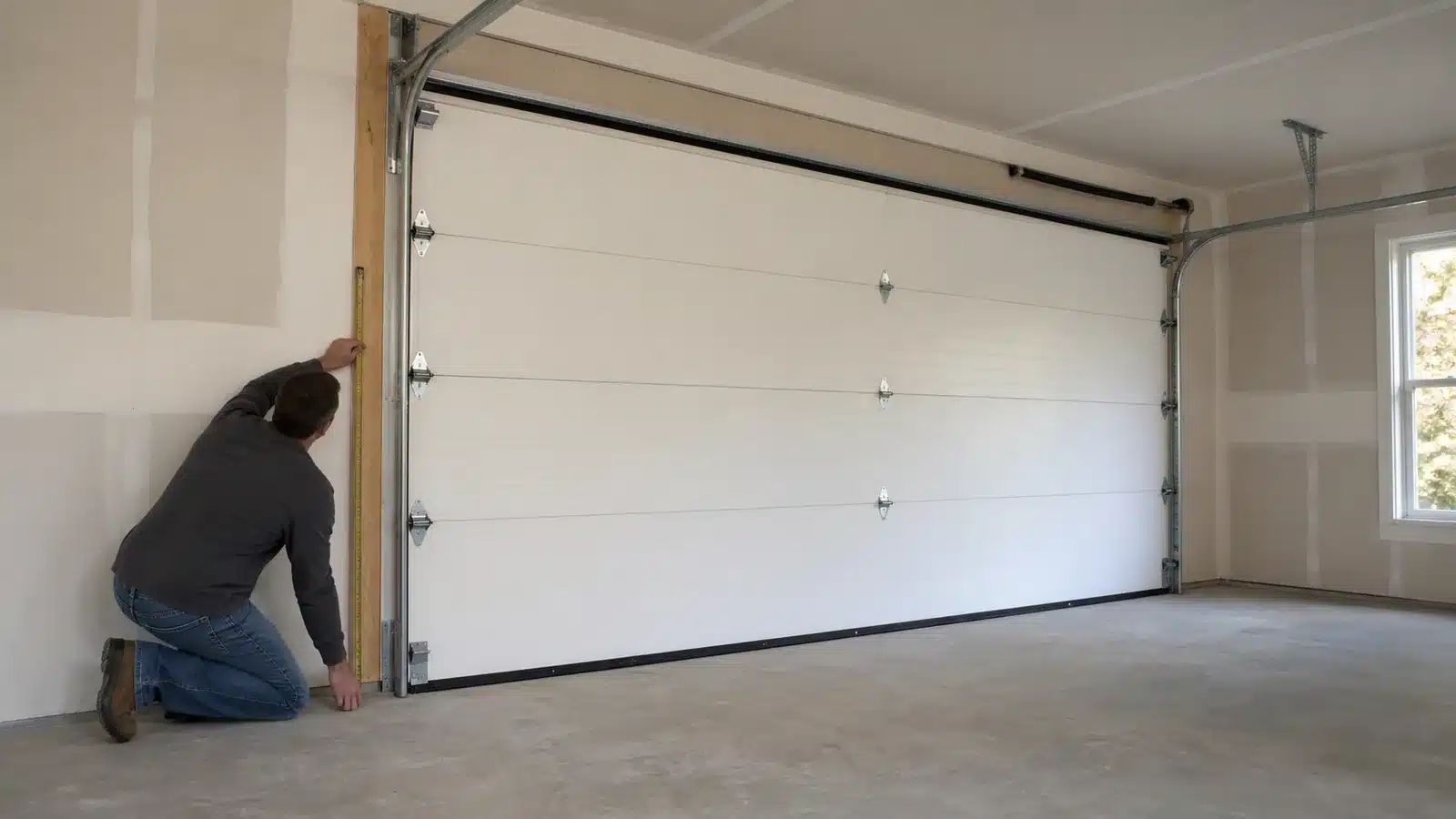

- Door dimensions: measure the opening width and height; do not infer height from the number of panels.
- Manufacturer limits: use the exact model page and installation manual, not a generic horsepower-to-weight table.
- Household needs: compare noise, expected cycles, battery backup, lighting, smart controls, rail extensions, warranty and local service.
HP, HPc and HPS do not mean exactly the same thing
HP normally refers to a motor horsepower rating. Current residential openers also use labels such as HPc, HPC or HPS to compare the lifting performance of a DC-motor system with a familiar horsepower class. The letter and capitalization vary by brand.
Chamberlain’s current buyer guide explicitly says its HPS figures are for comparison purposes and that DC-motor lift capacity is typically not measured in horsepower. That makes an HPS or HPc tier useful within a manufacturer’s product family, but it is not permission to treat every brand’s 1/2, 3/4 and 1-1/4 label as a laboratory-equivalent motor measurement.
Why the front-of-box number can mislead you
Genie’s current product information provides a useful example. The manufacturer identifies its Chain 550 Essentials as a 1/2 HPc opener for residential sectional doors up to 7 feet high and 500 pounds, or up to 8 feet with its specified extension kit. Genie also identifies the 1-1/4 HPc StealthDrive 750 for a sectional door up to 7 feet high and 500 pounds, with a different 8-foot extension kit.
Those are not interchangeable products: their drive, noise, accessories, battery configuration and rail parts differ. But the same stated door envelope on those two pages shows why a shopper should not turn an HPc label into a universal weight chart. Select the exact system that the manufacturer supports, then compare the performance tier and features inside that supported application.
| Label you see | How to use it | What it does not prove |
|---|---|---|
| 1/2 HP AC | Compare conventional AC models while confirming the exact door and rail specifications. | That every 1/2 HP opener supports every double door or the same maximum weight. |
| 1/2 HPc/HPS | Treat it as the manufacturer’s comparison class for that DC system. | That it is a measured 1/2 HP motor or directly equal to another brand’s label. |
| 3/4 HP or equivalent | Consider it when the manufacturer places your heavier construction or high-use situation in that tier. | That the opener can compensate for a binding or out-of-balance door. |
| 1 to 1-1/4 HPc/HPS | Compare the maker’s higher lift tier, features and supported applications. | Commercial duty, unlimited door weight or compatibility with a one-piece or unusually tall door. |

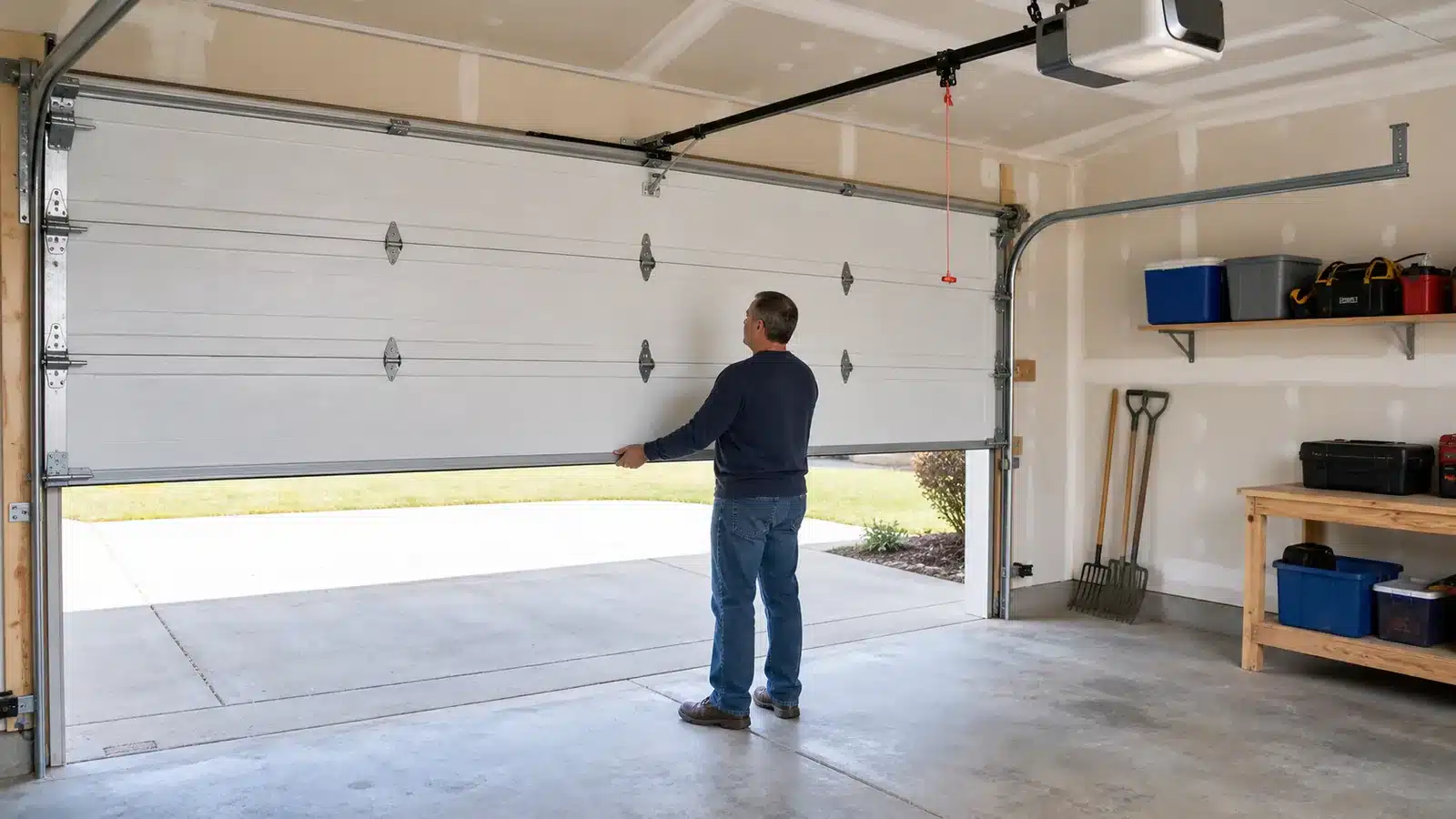

Check door balance before you shop
Use the balance procedure in the manual for your exact door and opener. LiftMaster manuals commonly direct the owner to close the door, disconnect it from the opener, raise it about halfway and release it. A balanced door should stay in place, supported by its springs, and should move without binding or sticking.
Start with the door fully closed
Keep people, vehicles and objects clear. Unplug or otherwise disable the opener as its manual directs. If the door cannot close safely, do not pull the release and do not continue.
Disconnect only as the manual directs
Use the emergency-release handle for the trolley, not a spring, cable or bracket. Some configurations have model-specific cautions, especially when the door is open.
Move the door using its intended grip
Raise and lower it slowly. It should travel smoothly without a person forcing, twisting or steering it around a binding point.
Pause near the manual’s test position
Many opener manuals use approximately halfway. DASMA’s recent guidance describes a well-balanced door remaining in place when raised three to four feet.
Stop on a concerning result
A door that is hard to lift, accelerates down, rises on its own, rubs, jerks, leaves a track or will not remain controlled needs a trained door-systems technician.
A balance test is not a spring-adjustment tutorial. Its purpose is to reveal whether opener shopping should pause. Adding paint, insulation, windows or reinforcement can also change door weight and spring requirements, so retest after a door-system professional completes a material change.
Garage-door-opener power by door situation
| Your door or use | Reasonable starting point | Verify before buying |
|---|---|---|
| Standard single sectional steel or aluminum door | A current manufacturer-supported 1/2-class opener is often sufficient. | Balance, exact door type, height, included rail, drive, safety equipment and desired accessories. |
| Standard double sectional door | Do not select by width alone. Start with models whose current specifications support the door. | Door weight and construction, balance, manufacturer size/weight limit and household use. |
| Insulated, wood-overlay, full-view or wind-load door | Compare the maker’s higher lift tier or dealer models when its guidance places the door there. | Actual door weight, spring match, one-piece/sectional status, reinforcement and written model support. |
| One-piece tilt-up door | Use only an opener and installation configuration that explicitly supports one-piece doors. | Geometry, hardware, attachment, travel, clearance and professional-installation requirements. |
| Door taller than 7 feet | Choose the opener together with its exact compatible rail or extension kit. | 8- or 10-foot support, kit part number, drive type, travel and headroom. |
| Busy household or frequent cycling | Compare the manufacturer’s higher-use tier, warranty, drive and service network. | Expected cycles, thermal protection, battery needs, noise and exact residential duty guidance. |
| Door feels heavy or binds | No opener tier yet. | Have balance, springs, cables, rollers, tracks, sections and attachment inspected first. |
This table is a starting path, not a universal capacity promise. A manufacturer may support a particular double sectional door with a 1/2-class model while requiring a different system for a smaller but heavier one-piece door. When the documents conflict with a generic chart, the exact model documentation wins.
Does a two-car garage door need 3/4 HP?
Not automatically. A two-car door is wider, but the opener does not lift the door’s dead weight by itself. Properly selected springs counterbalance most of that weight. The opener moves the balanced system through its travel and provides controlled closing, stopping and reversing.
Measure and identify the door instead of buying from the opening width alone. A basic double steel sectional door may fit a current 1/2-class model whose manufacturer lists that application. A wide wood-overlay, insulated, wind-load or full-view door may call for a higher tier or a dealer-specified operator. If the model page gives a maximum weight, use the complete installed door weight—not a guess based on panel size.
Door material, insulation and reinforcement matter
Nominal size describes only part of the load. Several details can change the installed door and the way it moves:
- Steel gauge and layers: a single-skin steel door differs from a steel-back insulated assembly.
- Wood and overlays: real wood and decorative overlay systems can add substantial weight.
- Glass: full-view sections or added windows change weight distribution and hardware needs.
- Wind-load reinforcement: struts and reinforcement affect both weight and attachment requirements.
- Added material: aftermarket insulation, paint or hardware can change the system the springs were selected to balance.
- One-piece geometry: a tilt-up door moves differently from a sectional door and must be explicitly supported.
Do not assume a more powerful opener makes an unsupported door safe. The door manufacturer or a qualified dealer can identify the installed weight and required reinforcement. The opener manufacturer can then confirm whether a particular model and rail configuration is suitable.
Door height and rail length are separate decisions
Many retail opener kits are configured for a door up to 7 feet high. Genie says doors from 7 feet 1 inch through 8 feet require the compatible extension kit for its applicable retail systems. Chamberlain likewise sells model- and drive-specific 8- and 10-foot rail kits and tells shoppers to measure the door before buying.
Check the complete kit before assembly. An 8-foot belt-drive extension may not fit a chain-drive opener, a previous generation or another brand. Some systems replace parts of the included rail or belt rather than simply bolting extra track onto a finished installation. For doors above the retail system’s stated limit, use the manufacturer’s dealer or professional path.
Drive type and horsepower solve different problems
A belt, chain or wall-mount system describes how the opener moves the door or where the operator is installed. It does not by itself establish the supported door weight. Compare drive type after confirming the application:
Belt drive
Prioritize quiet operation. A steel-reinforced belt is attractive beneath or beside living space, but price, replacement parts and model-specific limits still matter.
Chain drive
Prioritize value and familiarity. Chain systems are widely available and durable, but normal chain and trolley noise can be more noticeable.
Wall mount
Prioritize ceiling clearance. These systems require compatible door hardware, shaft space and installation conditions; they are not a universal upgrade.
If noise is your main concern, compare the disadvantages and tradeoffs of belt-drive garage door openers after confirming door fit. If you are considering one particular Genie family, the Genie StealthDrive 750 comparison separates the older 7055 from the current 7155 family.
When a higher power tier makes sense
A higher manufacturer tier can be reasonable when the exact documentation supports your door and one or more of these conditions applies:
- the door is a properly balanced, heavier approved construction;
- the manufacturer identifies the tier for a one-piece or heavy door application;
- the household opens the door frequently and the maker positions that tier for higher use;
- the desired model bundles battery backup, brighter lighting, cameras, smart control or accessories not offered on a lower tier;
- a professional door dealer specifies the operator as part of a complete door-and-spring system.
Do not promise that more horsepower automatically makes every opener last longer. Door balance, installation, travel and force settings, drive components, temperature, maintenance, cycle frequency and product design all affect service life. Use the warranty and manufacturer duty guidance for the exact model rather than a broad longevity claim.
Before-you-buy worksheet
1. Record the door
Width, height, sectional or one-piece, material, insulation, glass, reinforcement and model/label information.
2. Check the system
Manual travel and balance, spring type, headroom, outlet, mounting structure, rail length and local code needs.
3. Verify the opener
Exact supported application, required kit, drive, accessories, warranty, service and current manual.
- Door opening: _____ wide by _____ high
- Door construction: sectional / one-piece; steel / aluminum / wood / full-view / other
- Added load: insulation / overlay / windows / struts / paint / none known
- Manual operation: smooth and balanced / uncertain / heavy or binding
- Installation: ceiling rail / compatible wall mount / professional evaluation needed
- Required rail: included 7-foot / exact 8-foot kit / exact 10-foot kit / dealer system
- Priorities: quiet / budget / battery backup / lighting / smart control / camera / local service
- Verified model and manual: ____________________
Common horsepower-selection mistakes
- Buying by door width aloneA double door can be light and balanced; a smaller wood or one-piece door can be a more demanding application.
- Using more motor to hide a bad doorHeavy, binding or uncontrolled manual travel points to the door system, not a shopping tier.
- Treating HPc as measured HPComparison labels help within a lineup but do not create a cross-brand engineering standard.
- Forgetting door heightA 7-foot retail rail will not become an 8-foot system because the motor label is larger.
- Assuming any extension kit fitsRail, belt and chain parts are model-, generation- and drive-specific.
- Ignoring the exact manualRetail summaries can omit exclusions, installation conditions and safety steps.
- Changing the door without rebalancingInsulation, windows, overlays and reinforcement can alter weight and spring requirements.
- Confusing remote compatibility with opener fitA universal remote may control an existing opener; it does not make a new motor compatible with a door.
If your actual problem is replacing a transmitter rather than the motor unit, use the separate guide to determine whether a universal garage-door remote will work. Opener power and remote radio compatibility are different decisions.
Frequently asked questions
Is 1/2 HP enough for a two-car garage door?
It can be, if the door is a properly balanced sectional door and the exact 1/2 HP or 1/2-class model’s current specifications support its construction, size and weight. Do not decide from width alone. Heavier wood, overlay, wind-load, full-view or one-piece doors may require a different model or professional specification.
What does HPc mean on a garage-door opener?
Manufacturers use HPc or similar labels to compare a DC opener system’s lifting performance with a familiar horsepower class. Treat it as a manufacturer comparison rating, not necessarily measured motor horsepower and not a universal capacity conversion across brands.
Can a stronger opener lift a garage door with a broken spring?
Do not attempt it. A broken or incorrect spring can make the door extremely heavy and unstable, and operating it can damage the opener or cause injury. Keep clear and call a trained door-systems technician.
How do I know whether my garage door is properly balanced?
Follow the balance procedure in the door or opener manual. Many manuals call for disconnecting the opener with the door closed, moving the door by hand and checking whether it remains near halfway without binding. Stop and call a trained technician if it feels heavy, drops, rises, sticks or moves unpredictably.
Primary sources
- DASMA: Garage Door Opener Safety Tips
- DASMA Tech Corner: Garage Doors Should Live a Balanced Life
- LiftMaster 8500 Owner’s Manual: Door Balance and Safety Checks
- Chamberlain Garage Door Opener Buyer’s Guide
- Chamberlain 8-Foot Belt-Drive Rail Extension Kit
- Genie Chain 550 Essentials 1/2 HPc Product Information
- Genie StealthDrive 750 1-1/4 HPc Product Information
- Genie EKBC Extension-Kit Support Information
Manufacturer terminology, limits, manuals and accessory compatibility can change. Reconfirm the exact opener, door and rail combination before purchase or installation.
