6 Styles of Garage Doors With Windows: Visual Guide
Visual style finder
Start with the architecture of your house

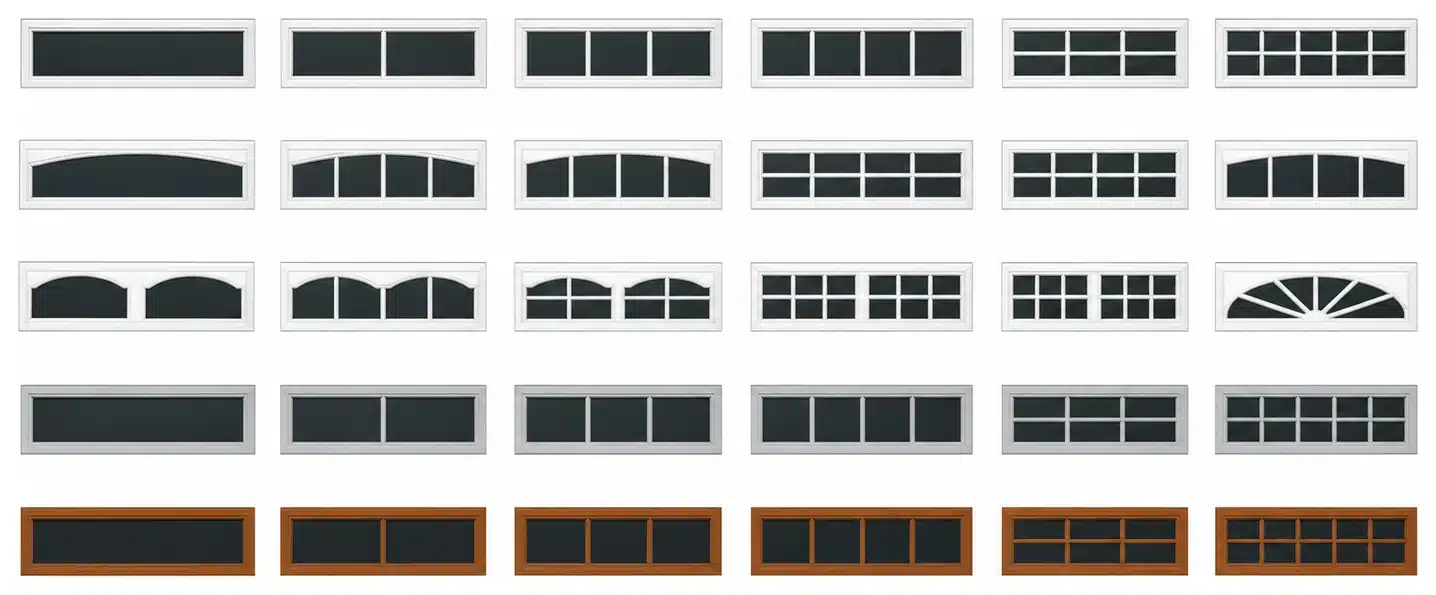

The best window pattern usually repeats a shape, proportion, or trim detail already on the home. Choose the closest style below, then compare privacy, glass, insulation, and replacement options before ordering.
Garage-door window styles compared
These are design families, not engineering specifications. Privacy, thermal performance, security, and cost come from the exact door-and-glazing package you select.
| Style | Best architectural fit | Privacy | Daylight | Maintenance | Insulation | Security | Relative cost |
|---|---|---|---|---|---|---|---|
| Carriage | Farmhouse, cottage, Tudor, barn-inspired | Good with a high top row and obscure glass | Moderate | Grilles and decorative overlays add edges to clean | Can be ordered in insulated door packages; verify glazing | High placement limits direct sightlines | Moderate to high with overlays or custom wood |
| Contemporary | Modern, midcentury, minimalist | Varies widely; full-view clear glass is most exposed | Highest with large or full-view glazing | Large panes show dust, water spots, and fingerprints | Insulated glazing is available on some models; large glazed areas still matter | Choose rated glazing and plan interior concealment | Moderate to highest |
| Traditional | Ranch, Cape Cod, many suburban homes | Good with upper-row inserts | Moderate | Simple rectangular inserts are straightforward | Many insulated-steel door choices; compare whole-door U-factor when available | High windows reduce easy views inside | Low to moderate |
| Colonial | Georgian, Federal, symmetrical facades | Good with divided-light obscure glass | Moderate | More grille divisions mean more edges | Door and glazing package specific | Upper symmetrical windows preserve privacy better than low glass | Moderate |
| Prairie | Low-slung homes, horizontal rooflines | Good with narrow bands or tinted/obscure glazing | Moderate to high | Long bands show streaks but have fewer grille intersections | Depends on frame and glazing package | Narrow high bands can balance light and concealment | Moderate to high |
| Craftsman | Bungalow, Arts and Crafts, natural materials | Good with divided upper lights | Moderate | Wood-look details may need more finish care than glass | Insulated steel/composite options vary by series | High placement and obscure glass help limit views | Moderate to high |

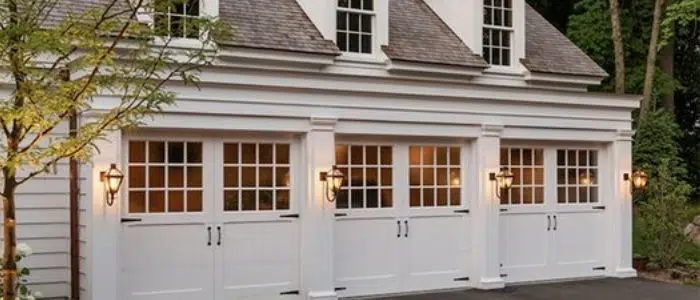

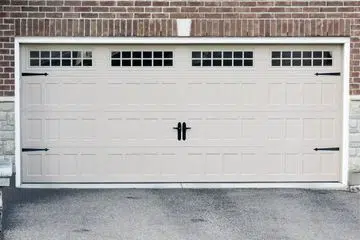

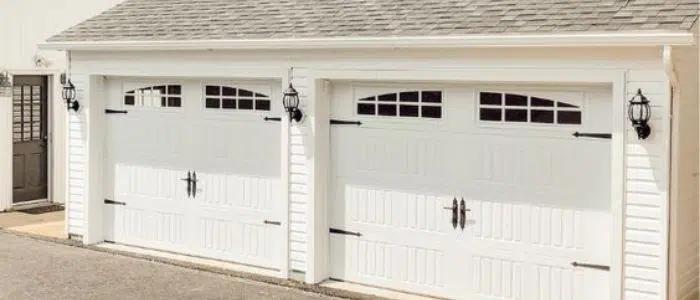

1. Carriage-style garage doors

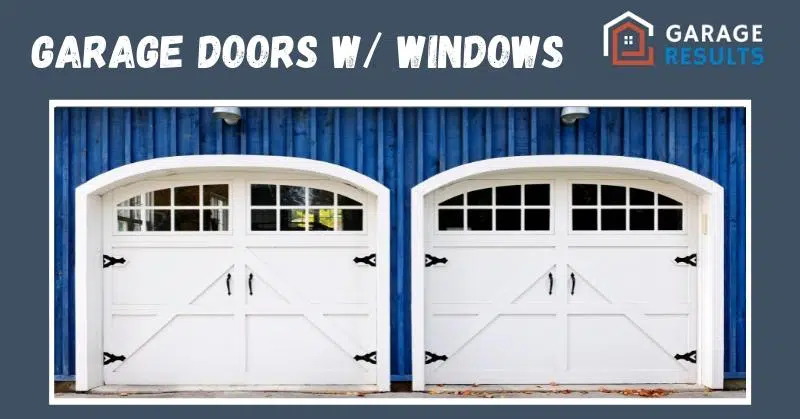

Carriage designs borrow the look of hinged coach-house or barn doors, usually with cross-buck overlays, vertical boards, decorative handles, and a row of divided windows. They are an easy match for farmhouses and cottages, but simpler versions also work on Tudor and traditional homes. Keep the window pattern aligned with nearby divided-light windows instead of adding a competing grid.

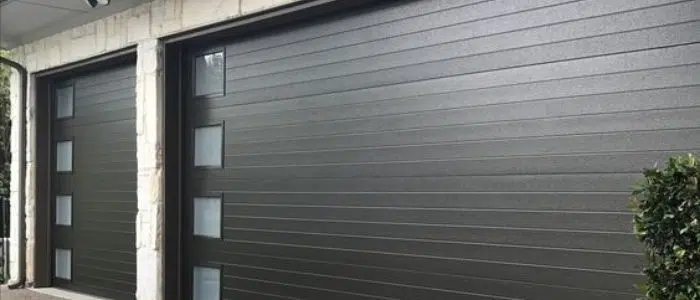

2. Contemporary garage doors
Contemporary doors use clean lines, broad flush panels, full-view glass, or windows arranged as a vertical strip. This family suits modern and midcentury homes especially well. A full-view door supplies the most daylight, but it also requires the most deliberate privacy and nighttime-lighting plan.
3. Traditional garage doors
Traditional raised-panel doors are the most flexible choice because they can accept rectangular, arched, or divided-light inserts without defining the whole house. They fit ranch, Cape Cod, and many suburban facades. Match the curve and grille pattern to the home’s front windows or entry door for a coordinated result.
4. Colonial garage doors
Colonial and Georgian facades depend on order, symmetry, and repeated proportions. Garage-door windows should follow the same discipline: equal divisions, centered placement, and grille patterns that relate to the house windows. White is common, but the key feature is symmetry rather than color.

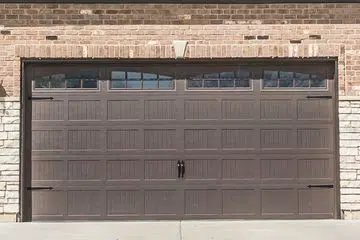

5. Prairie-style garage doors
Prairie design emphasizes horizontal lines, low roofs, and long window bands. A narrow row of glass, offset panes, or an uninterrupted horizontal strip can continue those proportions across the garage. Choose a window height that brings in daylight without exposing shelves, tools, or vehicles from the street.

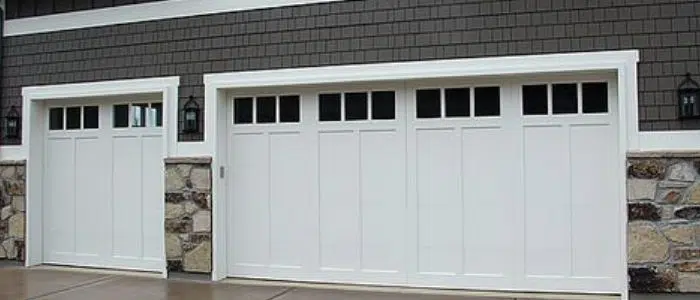

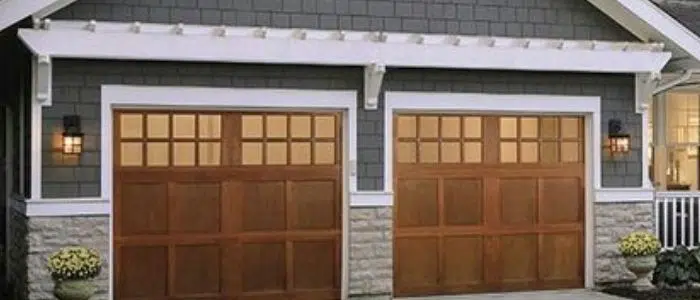

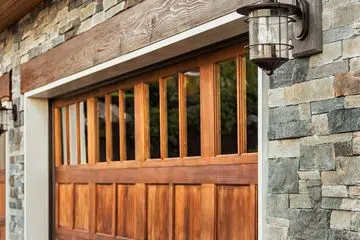

6. Craftsman-style garage doors
Craftsman doors pair natural-looking materials with sturdy proportions and modest divided lights. They work especially well on bungalows and Arts and Crafts homes. Look for a window grid, trim color, and panel rhythm that repeats porch columns, exposed joinery, or the home’s grouped windows.
Choose the glass, not just the window shape
Two doors with the same window pattern can behave very differently. Ask for the exact glazing material and construction in writing; terms such as frosted, insulated, and impact-rated describe different properties.
Clear glass
Clear glass provides the best view and most direct daylight. It also exposes the garage interior most clearly, especially after dark when interior lights are on. High placement, blinds approved by the door maker, or an opaque interior screen elsewhere in the garage may be more dependable than daytime-only reflective film.
Frosted or obscure glass
Etched-looking, seeded, pebbled, or patterned glazing diffuses detail while still transmitting light. Privacy levels vary, so view a full-size sample from both sides in daylight and at night. Shapes and silhouettes may remain visible when the garage is brightly lit.
Tinted or mirrored glass
Tint can reduce brightness and change the door’s appearance. Reflective products usually depend on the brighter side being outside; they are not reliable nighttime privacy when the garage is illuminated. Darker is not automatically safer or better insulated.
Tempered safety glass
Tempered glass is heat- or chemically treated and breaks differently from ordinary annealed glass. Ask which safety-glazing standard the complete window assembly meets. Do not use the word tempered as a substitute for impact-rated or hurricane-rated; those are separate claims.
Insulated glazing
Insulated glass uses multiple panes separated by a sealed space. It can improve the window portion’s thermal performance, but the whole door’s construction, perimeter seals, installation, and air leakage still matter. Compare the complete door’s tested U-factor when the manufacturer publishes one.
Impact-rated glazing
Impact-rated glazing is part of a tested wind- and debris-resistant door assembly for specified conditions. A generic pane swap, decorative insert, or applied film does not create that rating. In hurricane or high-wind areas, verify the complete door’s approval, design pressure, size, glass option, and local-code acceptance.
Five buying questions that prevent expensive surprises
1. Where should the windows sit?
Top-row windows give the best general privacy and distribute weight conventionally. A vertical strip can suit a modern facade and bring light deeper along one side. Full-view glass maximizes daylight but reveals more of the room. Confirm that the configuration is offered and engineered for your exact door size.
2. What happens at night?
Stand at the sidewalk after dark with the garage lights on. Clear and lightly tinted glass can reveal tools, vehicles, storage, and whether anyone is home. Obscure glass helps, but only a real night test shows how much shape and movement remain visible.
3. Which direction does the door face?
West- and south-facing glass may experience strong afternoon sun, glare, and heat; north-facing glass tends to provide softer light. Before applying film, confirm compatibility with the glazing type and door warranty because solar-absorbing films are not suitable for every insulated or coated pane.
4. Can a damaged window be replaced later?
Ask whether the manufacturer sells the pane, frame, grille insert, or complete top section separately, and how long parts are typically supported. Photograph the product label and keep the door model, size, color, glass code, and purchase records where you can find them.
5. Does the HOA or local code limit the choice?
HOAs may regulate visible style, color, window pattern, and material. Local rules may add wind, energy, safety-glazing, or wildfire requirements. Obtain written approval before ordering a custom door or altering an approved assembly.
6. Will the new section affect the door?
Window sections add or redistribute weight. A qualified garage-door professional should confirm section compatibility and rebalance the door when needed. Never adjust torsion springs or high-tension hardware yourself.
32 more garage-door window ideas, organized
Use this gallery to notice repeatable decisions: high versus low placement, narrow versus broad glass, one continuous band versus divided lights, and how the window rhythm relates to the house.
Light doors and classic facades

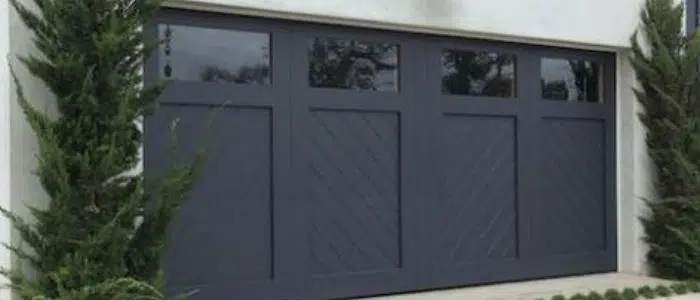

Dark and contemporary doors

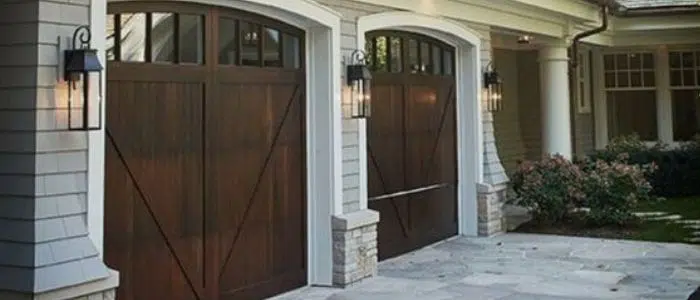

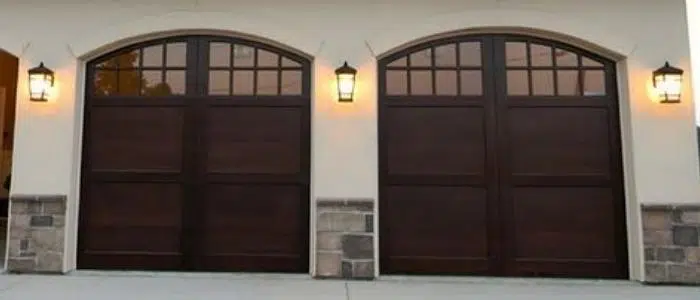

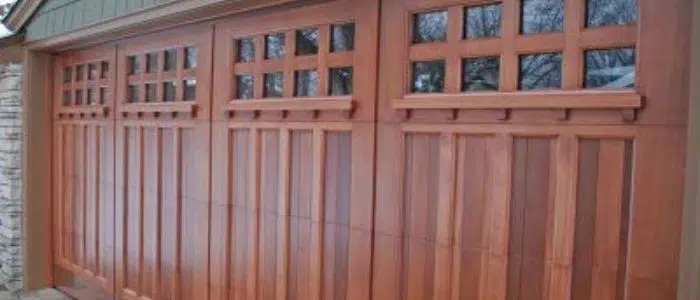

Wood and wood-look doors

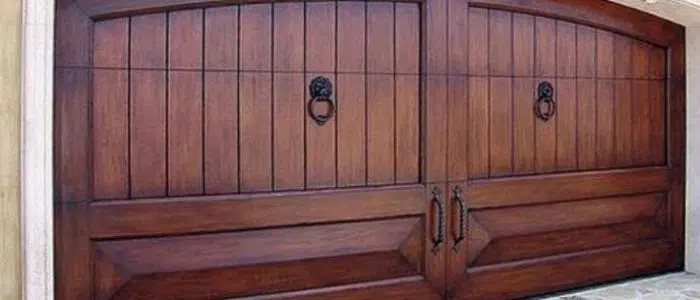

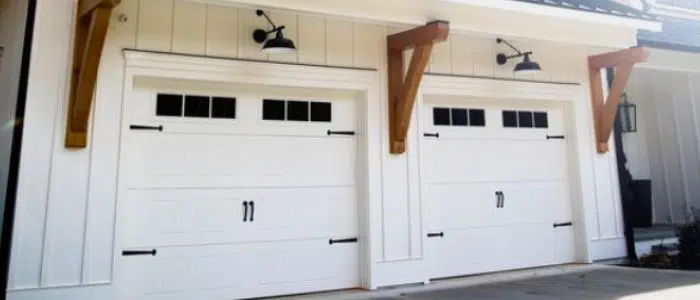

Barn-inspired and mixed layouts
Affiliate disclosure: As an Amazon Associate I earn from qualifying purchases. This does not increase the price you pay.
Useful add-ons without replacing the door
These products solve small jobs only. Check the door maker’s instructions before applying anything to its glazing, and never treat film as safety glazing, forced-entry protection, or a wind-rating upgrade.
rabbitgoo Frosted Static-Cling Film
The current 17.5-by-78.7-inch listing uses a non-adhesive static-cling design. It is intended to blur views while letting light through and can be removed from smooth glass.
Best for: Testing more visual privacy on compatible, smooth indoor-facing glass. Confirm film compatibility with the exact glazing, coatings, insulated unit, and warranty before installation. Do not expect complete silhouette concealment under every lighting condition.
View on Amazon →Invisible Glass 95164 Reach & Clean Tool
The current 95164 listing includes an extendable handle, standard and mini heads, reusable microfiber pads, and a storage bag for automotive and home glass.
Best for: Reaching upper garage-door windows while the door is fully closed and stable. Use a cleaner approved for the glazing and film; never stand in the door’s path or clean while the door is moving.
View on Amazon →Frequently asked questions
Do garage-door windows make a garage less secure?
They can increase visibility into the garage and may create a breakable opening, but risk depends on placement, glazing, door construction, lighting, and what is visible. Choose high or obscure glass, keep valuables out of sight, lock the entry door between the garage and house, secure remotes, and follow the broader checks in our garage-door security guide.
Can I add windows to my existing garage door?
Sometimes, but it is not a generic cut-and-install project. The door maker or dealer must confirm the exact section, reinforcement, glazing kit, wind approval, weight change, balance, and warranty. Replacing the complete top section with a model-approved window section is often more predictable than field-modifying a panel.
Are garage-door windows insulated?
Some are available with insulated glazing, while others are single-pane glass or acrylic. Ask for the exact construction and compare the complete door’s thermal data. If comfort is the priority, combine the right door package with perimeter weather seals and the practical guidance in our garage-door insulation guide.
Is frosted glass private at night?
It is more concealing than clear glass, but privacy is not absolute. Bright interior light can reveal silhouettes and movement through many obscure products. Test the sample under realistic nighttime lighting before ordering an entire door.
Should garage-door windows match the house windows exactly?
They do not need to be identical. Matching one or two cues—the arch, grille proportions, frame color, or horizontal alignment—usually looks more intentional than copying every detail.
How we verified this guide
We compared the original 32 Garage Results photos with current manufacturer and industry guidance, then separated visual style advice from performance claims that must be verified for the exact door.
- 2025 Cost vs. Value Report — current national garage-door replacement cost and cost-recouped context.
- Clopay: modern garage-door windows — current clear, obscure, tinted, mirrored, acrylic, and tempered-glass options by door series.
- Clopay garage-door FAQ — current tempered and insulated glazing availability examples.
- DASMA technical data sheets — glazing, thermal-performance, wind-load, and manufacturer-specific verification references.
- 16 CFR Part 1201 — federal architectural safety-glazing standard and terminology.
- Gila home-window-film FAQ — film compatibility, installation, removal, and day/night privacy limitations.
