Quick answer: The cheapest practical approach is usually lightweight rigid foam board cut to the recessed sections of a compatible steel door.
- A garage-door kit is faster and easier.
- For the best documented thermal performance, choose a product with a labeled R-value for the complete installed assembly and follow its instructions.
- Reflective products can help with radiant heat, but their claimed performance depends on the installation and required air space.
Garage door insulation selector
Pick your insulation method
Choose by budget, installation time, and the kind of heat transfer you are trying to reduce.
Always confirm that your door manufacturer permits added insulation before attaching anything.
Safety first: added weight can change door balance
DASMA advises homeowners not to add material to a garage door unless the original door manufacturer provides instructions. Extra weight can change spring balance, strain the opener, and interfere with the door assembly. Before and after the project, disconnect the opener only when the door is fully closed and check that the door moves smoothly and can stay around halfway open. If it drops, rises hard, binds, or feels noticeably heavier, stop using the opener and call a trained garage-door technician. Never adjust springs, cables, bottom brackets, drums, or pulleys yourself.

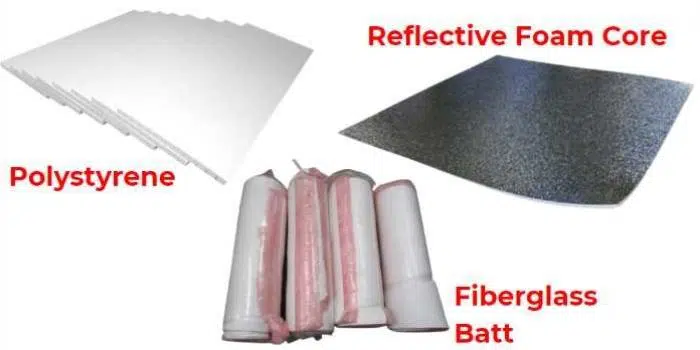

Garage door insulation materials compared
There is no universal winner. The best choice fits the depth and shape of your door panels, stays clear of all moving hardware, and is permitted by the door manufacturer.
| Method | Best use | Cost and effort | Important limitation |
|---|---|---|---|
| Rigid foam board | Lowest-cost custom fit for recessed steel panels | Usually low material cost; the most measuring and cutting | R-value varies by foam type and thickness. Use only a product and exposed facing allowed by the door manufacturer and local requirements. |
| Fiberglass door kit | A purpose-made, faced kit with labeled thermal performance | Higher cost; panels are flexible and trim to fit | Heavier than reflective film. Confirm door compatibility and recheck balance after installation. |
| Rigid-panel door kit | Clean appearance and straightforward installation | Moderate to high cost; less material planning | Panel dimensions and retainer style must match your door; many kits cover only one single door. |
| Reflective / bubble product | Lightweight radiant-heat control, especially on sun-exposed doors | Light and easy to cut | It is not equivalent to thick mass insulation. Reflective R-value claims require the specified air space; some garage-door installations are rated only as a radiant barrier. |
Current garage door insulation picks
These listings were checked for the exact model and current availability on July 16, 2026. Measure first: kit coverage describes material area, not a guarantee that every panel shape will fit.
As an Amazon Associate I earn from qualifying purchases.
Owens Corning 500824
A faced fiberglass garage-door kit with eight 22-by-54-inch panels, about 66 square feet total. It is intended for a single door up to 9 feet wide and trims with common tools.
Best for: A compatible one-car door when you want a purpose-made fiberglass kit and cleanable white facing.
View on Amazon →Reach Barrier 3009
Eight reflective 24-by-48-inch panels provide 64 square feet of material for one standard single door. The kit includes adhesive pads and is easy to trim with scissors or a knife.
Best for: A sun-exposed single door where low added weight and radiant-heat control matter most. The product manual says a 3/4-inch air space improves thermal performance.
View on Amazon →OLFA L-1 18 mm knife
A heavy-duty snap-off utility knife with adjustable cutting depth. Use a straightedge, eye protection, gloves appropriate for the insulation, and a scrap board under every cut.
Best for: Clean, repeatable cuts in many rigid-foam and reflective products. Follow the insulation manufacturer’s tool instructions.
View on Amazon →Coverage calculator: how much insulation do you need?
For the closest estimate, add the area of the recessed opening in every door panel. If you only know the door size, width multiplied by height gives a conservative starting point.
Use this simple formula
Material area = total panel area × 1.10
Sheets or kits = round up (material area ÷ package coverage)
Common starting points
- 8 × 7 door: 56 sq. ft.
- 9 × 7 door: 63 sq. ft.
- 16 × 7 door: 112 sq. ft.
- One 4 × 8 foam sheet: 32 sq. ft.
- Reach 3009 kit: 64 sq. ft.
- Owens Corning kit: about 66 sq. ft.
A 9-by-7-foot single door is 63 square feet before waste, so one 64-square-foot kit leaves almost no margin if you use the full nominal door area. Measure the actual recessed panels: their combined area is often smaller. A 16-by-7-foot double door usually needs two single-door kits. Compare the live kit price with the number of locally priced foam sheets you need; prices and shipping change too often for one fixed cost estimate to stay accurate.
Tools and materials checklist
How to insulate a garage door step by step
This process applies to a compatible sectional steel door with recessed panels. Wood doors, one-piece tilt-up doors, roll-up doors, doors with ventilation openings, and doors with unusual hardware need model-specific instructions.
Check the door and its balance
Find the door’s model label and installation manual. Confirm that the manufacturer permits a retrofit and note any weight or fastener limits. With the door fully closed, pull the emergency release and move the door by hand. It should travel smoothly and stay around halfway open. Reconnect the opener before continuing. If the door binds or will not hold position, have it serviced before adding material.

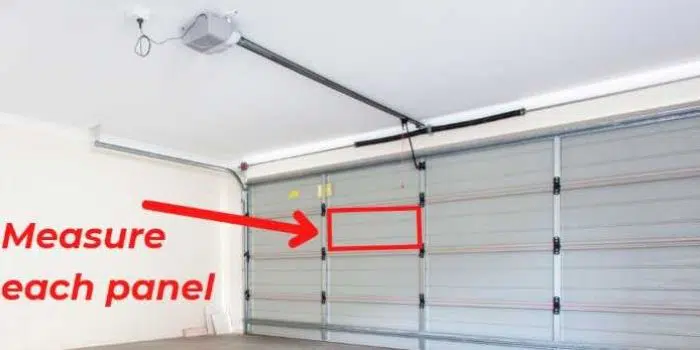

Measure each recessed panel
Measure the clear width, height, and usable depth inside each panel. Record every opening because rows can differ. Do not measure across hinges, stiles, handles, locks, struts, rollers, cables, or other moving parts.
Measure the usable recessed opening, not just the full door width and height.
Choose a compatible material and plan the cuts
Compare the material’s thickness with the panel depth and check its labeled coverage. Lay out cuts to minimize waste. If you use reflective material, copy the manufacturer’s air-space and attachment instructions rather than pressing it flat and assuming the advertised R-value still applies.

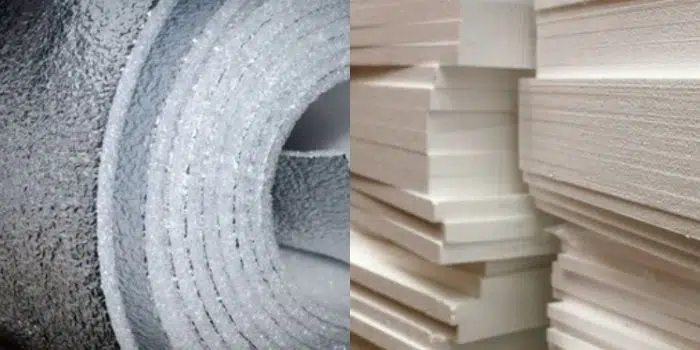

Local foam board is usually cheaper; a purpose-made kit reduces planning and prep.

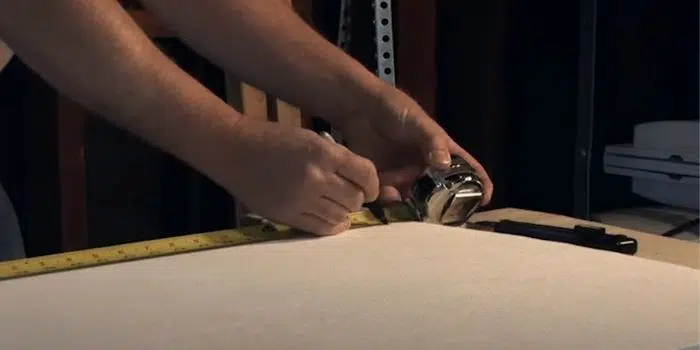

Cut and test one panel first
Mark one piece, place it on a protected work surface, and cut along a straightedge. Dry-fit it before cutting the rest. The piece should sit securely without bowing the door skin, covering a fastener, or rubbing the panel joints when the door bends through the track.
A single test piece prevents a full batch of undersized or oversized cuts.
Install one panel at a time
Use the clips, retainers, tape, or adhesive specified by the insulation kit and allowed by the door manufacturer. Keep every hinge, roller, track, cable, strut, spring, photo-eye sensor, manual lock, warning label, and ventilation opening unobstructed. Never attach insulation to the track or spring assembly.
Install and inspect each piece before moving to the next door section.
Test balance, travel, and safety reversal again
Move the disconnected door by hand and repeat the halfway balance check. Reconnect the opener, watch a complete open-and-close cycle, verify the photo eyes stop a closing door when blocked, and perform the opener maker’s floor-obstruction reversal test. If travel changes, the opener strains, or any material shifts, stop and call a trained technician.
Insulation does not replace weatherstripping
Stop air leaks around the door
Panel insulation slows heat transfer through the door surface. It does not close gaps at the top, sides, or bottom. Inspect the perimeter seals separately and replace worn pieces with the profile specified for your door.
Do not tape across the moving joints between door sections to “air seal” them. The sections must articulate as the door travels. Do not block intentional ventilation openings, especially where a local code, appliance, or manufacturer requires them.
What should you expect after insulating?
Reasonable benefits
- Slower conductive or radiant heat transfer through the door, depending on material
- A less harsh door-surface temperature
- Possible reduction in outside noise and door-panel vibration
- A cleaner-looking interior when the facing and cuts are neat
What it will not do alone
- Turn an unconditioned garage into conditioned living space
- Seal perimeter air gaps or leaky windows
- Fix an uninsulated ceiling, walls, or shared house boundary
- Guarantee a specific temperature change or utility-bill savings

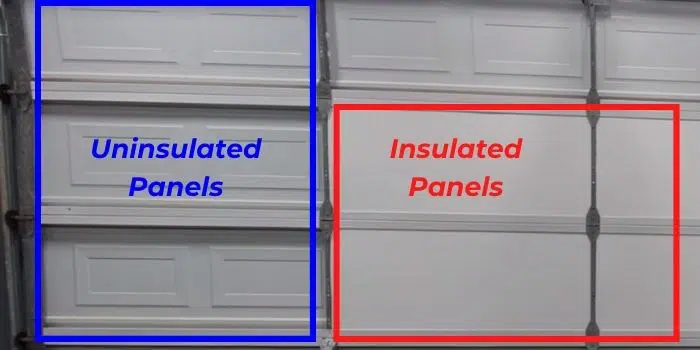

A neat finished installation keeps insulation inside the panel recesses and clear of the moving hardware.
Results vary with climate, sun exposure, door construction, air leakage, and the rest of the garage envelope. An attached garage may affect comfort in adjacent rooms, but a detached unheated garage may show little or no measurable household energy savings. Treat savings claims as project-specific, not guaranteed.
Garage door insulation FAQ
What is the cheapest way to insulate a garage door?
For a compatible sectional steel door, locally purchased lightweight rigid foam board is usually the lowest-cost material. A 4-by-8 sheet covers 32 square feet before cuts and waste. Confirm the permitted foam type, facing, thickness, and attachment method with the door manufacturer.
Do reflective bubble kits have an R-value?
Only in the assembly described by the manufacturer. Reflectix states that R-value claims require an enclosed or open air space, and its current garage-door instructions rate the prescribed installation at R-3.0 while also describing a radiant-barrier benefit in warmer climates. A thin reflective layer pressed flat against metal should not be treated like thick foam or fiberglass.
How many insulation kits do I need for a two-car door?
Most single-door kits cover about 64 to 66 square feet. A nominal 16-by-7-foot door is 112 square feet, so it commonly needs two single-door kits. Measure every recessed panel and add about 10 percent for trimming before ordering.
Can I use foil tape around every panel?
Use tape only where the insulation instructions and door manufacturer allow it. Tape is not a substitute for perimeter weatherstripping, and it must never bridge moving section joints or cover hardware, labels, sensors, drainage, or ventilation.
Can added insulation damage a garage door opener?
It can if the material changes the door’s balance or interferes with travel. The springs should counterbalance the door’s weight; the opener is not meant to lift a badly balanced door. Test before and after, and call a trained technician if the door no longer moves and holds position normally.
How we verified this guide
We checked the installation and safety points against current manufacturer and industry guidance, then verified each recommended Amazon listing by exact model and availability.
- Reflectix garage-door installation instructions (2025)
- Reflectix air-space requirements for DIY applications
- DASMA Technical Data Sheet 176: Adding Weight to a Garage Door Assembly
- LiftMaster garage-door opener safety check
- ENERGY STAR guidance on sealing air leaks and adding insulation
- Owens Corning 2025 insulation accessory list (model 500824)
